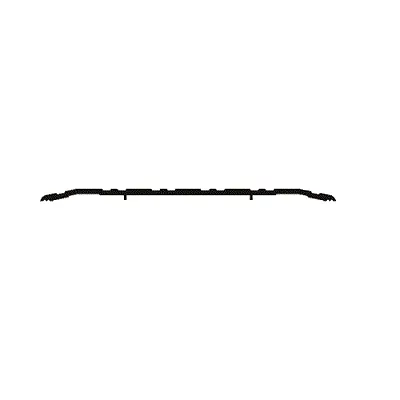

Pemko 272A Saddle Thresholds have a 6" Width, 1/4" Height, in a Mill Finish Aluminum. Pemko 272A comes in 36", 48", 72", and 96" Lengths.
**Quick Shipping for 36 Inch, 48 Inch, & 72 Inch length-only**
Pemko 272A Features
- Symmetrical shapes are designed to span a given area, usually under a door.
- Supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
- To use a saddle threshold in an offset condition, use an elevator.
- Used in an offset condition
Installation -
1. Measure the width of the door opening from jamb to jamb and stop to stop and mark ends of the threshold for trimming.
2. Trim ends of threshold to fit around door jambs and stops.
3. Drill pilot holes in the floor through pre-drilled holes in the threshold.
4. Caulk ends of threshold, and under the full length of legs (important for effective sealing and moisture control).
5. Secure threshold to the floor with supplied screws. (When fastening to concrete, use anchors; anchors not included.)
Specifications Pemko 272A Commercial Door Saddle
| Available Finishes: | A - Mill Finish Aluminum Aluminum D - Dark Bronze Anodized Aluminum G - Gold Anodized Aluminum B - Mill Finish Extruded Bronze (Brass) |
| Width: | 6" (152.4 mm) |
| Height: | 1/4" (6.4 mm) |
| Manufacturer: | Pemko |
Certifications
| BHMA: | BHMA Certified |
| UL: | Underwriters Laboratory 4L10 Fire Rated - UL10C - Positive Pressure |
| Other Certifications: | Barrier-Free |
